1194606 OSC6133SIH

i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

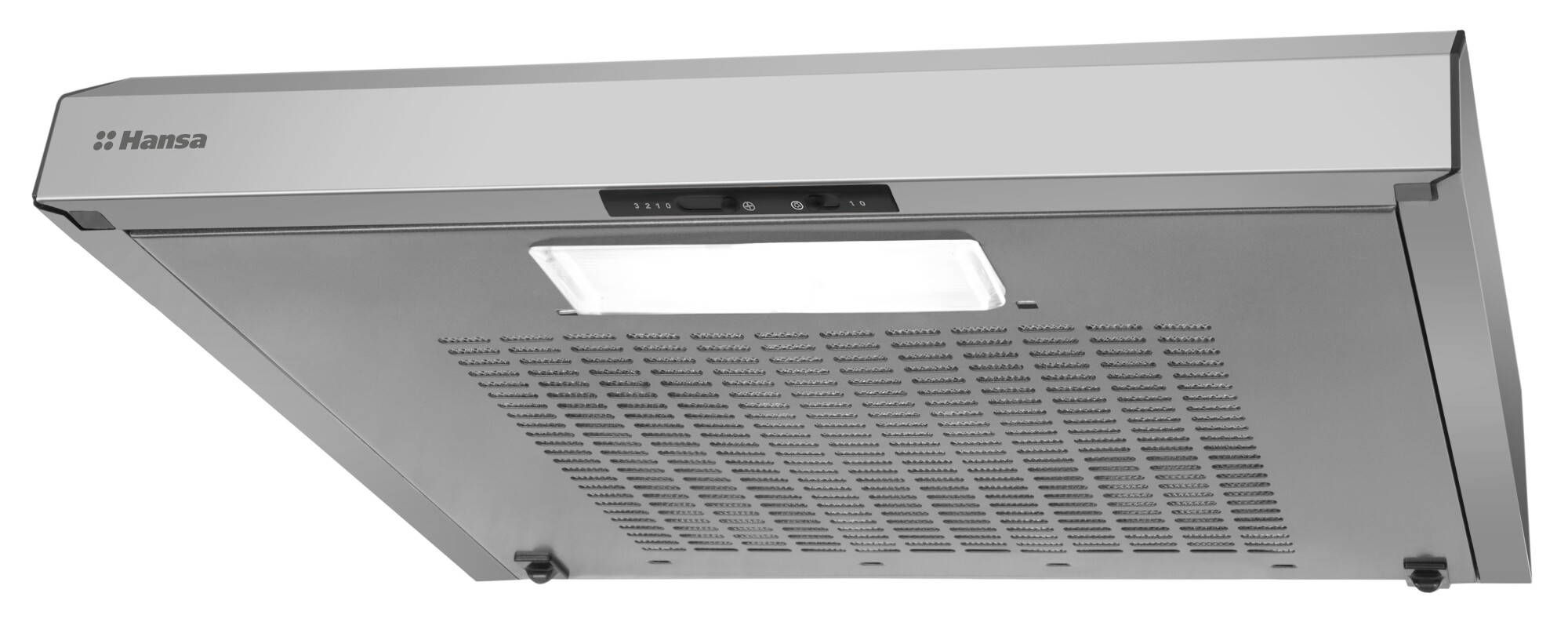

OSC6133SIH

OSC6133SIH

1194606

  • FEATURES

    • Air flaps:
      Yes
    • Panel - language version:
      Pictograms
    • Protection class of electric shock:
      I_Class

  • Equipment

    • Number of carbon filters:
      1
    • Number of grease filters:
      1
    • Number of layers in grease filter:
      2
    • Number of speed:
      3
    • Type of control:
      Slider
    • Type of grease filters:
      Aluminum mesh
    • Carbon filter type:
      FWU 60

  • Technical data

    • Frequency:
      50
    • Air flow at 1 speed - extractor by EN 61591:
      100 m3/h
    • Air flow at 2 speed - extractor by EN 61591:
      130 m3/h
    • Air flow at 3 speed - extractor by EN 61591:
      170 m3/h
    • Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
      170 m3/h
    • Air Flow at Minimum Speed in Normal Use:
      100 m3/h
    • Air Flow Rate at Best Efficiency Point - Q BEP:
      103.8 m3/h
    • Air Pressure at Best Efficiency Point P BEP:
      180 Pa
    • Annual energy consumption:
      41.2 kWh
    • Average Illumination of the Lighting System on the Cooking Surface - E middle:
      61 lux
    • Control panel on one side/two sides:
      One side
    • Dimensions of grease filter:
      300x390
    • Display color:
      No
    • Distance from light cover to wall:
      360 mm
    • Distance to electric hob:
      450 mm
    • Distance to gas hob:
      650 mm
    • Electric Power Input at Best Efficiency Point - W BEP:
      61.4 W
    • Fluid Dynamic Efficiency - FDE hood:
      8.5
    • Fluid Dynamic Efficiency Class:
      E
    • Grease Filtering Efficiency - GFE hood:
      67.5 %
    • Grease Filtering Efficiency Class:
      D
    • Internal/external motor:
      Internal
    • Main lighting colour temperature [K]:
      300
    • Lighting Efficiency - LE hood:
      14.5 lux/W
    • Lighting Efficiency Class:
      D
    • Lighting Efficiency Class:
      D
    • Maximum Possible Air Flow:
      170 m3/h
    • Motor unit rated power:
      85 W
    • Motor type/model:
      K-20 025 02 HE
    • Net depth:
      470 mm
    • Net height max:
      85 mm
    • Net height min:
      85 mm
    • Net weight:
      4.2 kg
    • Net width:
      600 mm
    • Noise level at 1 speed - extractor by EN 60704-2-13:
      53 dB
    • Noise level at 2 speed - extractor by EN 60704-2-13:
      58 dB
    • Noise level at 3 speed - extractor by EN 60704-2-13:
      63 dB
    • Nominal Power of the Lighting System - W L:
      4.2 W
    • Number of motor units:
      1
    • Number units of main lighting:
      1
    • Air exhaust diameter:
      120 mm
    • Type of plug or cable:
      Euro plug
    • Power cabel length:
      115 cm
    • Power rating:
      89 W
    • Power Supply Voltage:
      230V
    • Power unit of main lighting :
      4 W
    • Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
      63 dB
    • Sound Power Emission at Minimum Speed Available in Normal Use:
      53 dB
    • Noise level:
      63 dB
    • Time Increase Factor - f:
      1.7
    • Type of main lighting:
      LED bulb E14
    • Type of main lighting:
      LED bulb E14
