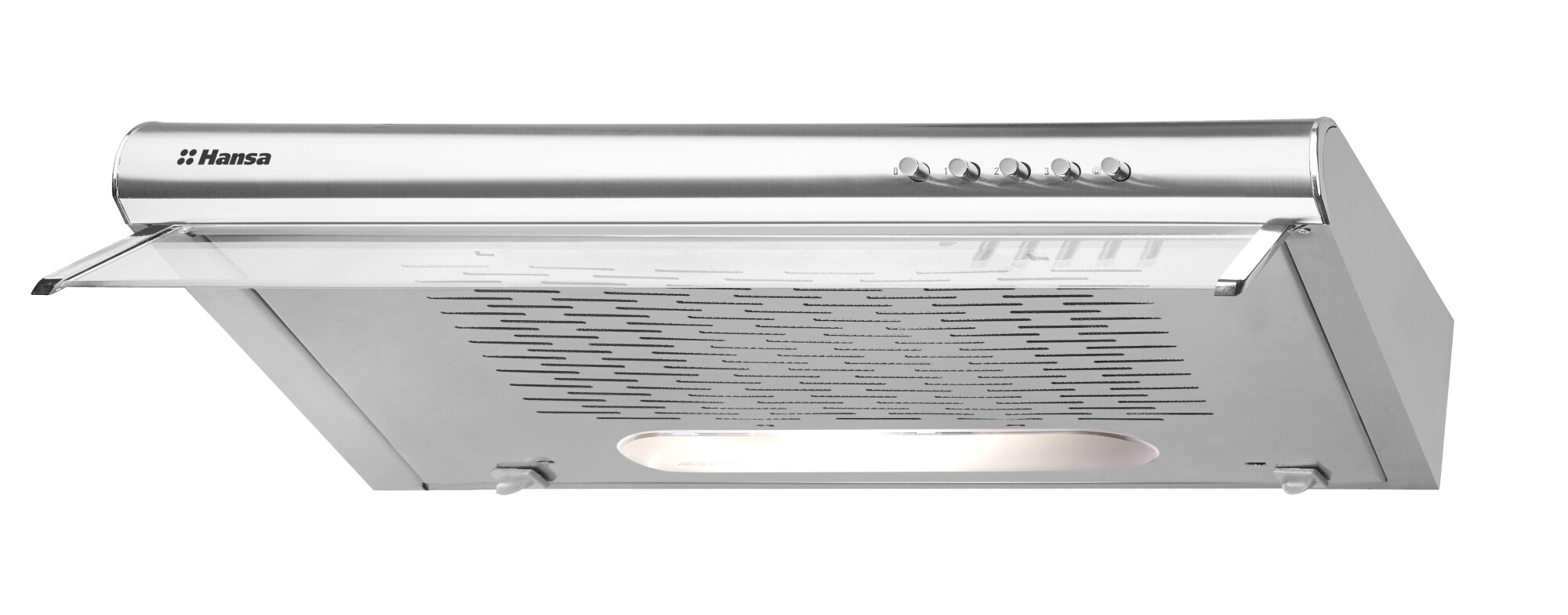

1160985 OSC5211IH

1160985 OSC5211IH

Carbon filter

Clean and efficient air extraction through integrated carbon filters.
(* carbon filter sold separately)

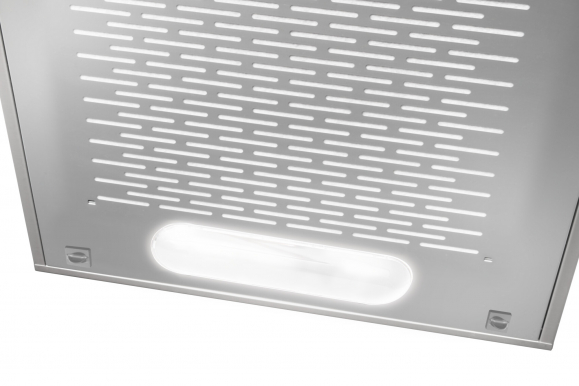

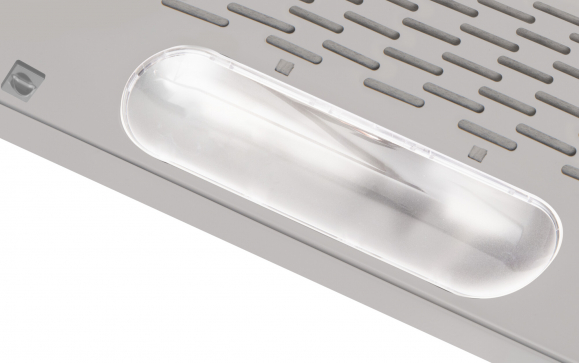

Lighting: halogen

Our hoods are equipped with halogen lights. On any model the light may be switched on even when the fan is not running. This may be used as an extra source of convenient lighting.

OSC5211IH

OSC5211IH

Carbon filter
Lighting: halogen

Add to comparison Delete comparison

1160985

FEATURES
- Air flaps:
  Yes
- Panel - language version:
  Pictograms
- Protection class of electric shock:
  I_Class
- Type of work:
  Extraction/Recirculation
Equipment
- Number of carbon filters:
  1
- Number of grease filters:
  1
- Number of layers in grease filter:
  3
- Number of speed:
  3
- Type of control:
  Push buttons
- Type of grease filters:
  Aluminum mesh
- Carbon filter type:
  FWU 50
Technical data
- Frequency:
  50
- Air flow at 1 speed - extractor by EN 61591:
  96 m3/h
- Air flow at 2 speed - extractor by EN 61591:
  127 m3/h
- Air flow at 3 speed - extractor by EN 61591:
  171 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  171 m3/h
- Air Flow at Minimum Speed in Normal Use:
  96 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP:
  99.8 m3/h
- Air Pressure at Best Efficiency Point P BEP:
  182 Pa
- Annual energy consumption:
  41.7 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle:
  61 lux
- Control panel on one side/two sides:
  One side
- Country of Origin on Rating Label:
  Made in EU
- Dimensions of grease filter:
  300 x 390 mm
- Display color:
  No
- Distance from light cover to wall:
  35 mm
- Distance to electric hob:
  450 mm
- Distance to gas hob:
  650 mm
- Electric Power Input at Best Efficiency Point - W BEP:
  58 W
- Fluid Dynamic Efficiency - FDE hood:
  8.1
- Fluid Dynamic Efficiency Class:
  E
- Grease Filtering Efficiency - GFE hood:
  67.5 %
- Grease Filtering Efficiency Class:
  D
- Internal/external motor:
  Internal
- Lighting Efficiency - LE hood:
  14.5 lux/W
- Lighting Efficiency Class:
  D
- Lighting Efficiency Class:
  D
- Maximum Possible Air Flow:
  171 m3/h
- Motor unit rated power:
  85 W
- Motor type/model:
  K-20 025 02 HE
- Net depth:
  485 mm
- Net height max:
  85 mm
- Net height min:
  85 mm
- Net weight:
  3.9 kg
- Net width:
  500 mm
- Noise level at 1 speed - extractor by EN 60704-2-13:
  53 dB
- Noise level at 2 speed - extractor by EN 60704-2-13:
  58 dB
- Noise level at 3 speed - extractor by EN 60704-2-13:
  63 dB
- Nominal Power of the Lighting System - W L:
  4.2 W
- Number of motor units:
  1
- Number units of main lighting:
  1
- Air exhaust diameter:
  120 mm
- Type of plug or cable:
  Euro plug
- Power cabel length:
  220 cm
- Power rating:
  89 W
- Power Supply Voltage:
  230V
- Power unit of main lighting :
  4 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use:
  53 dB
- Noise level:
  63 dB
- Time Increase Factor - f:
  1.7
- Type of main lighting:
  LED
- Type of main lighting:
  LED
