1190701 OSC5132BH

1190701 OSC5132BH

Carbon filter

Clean and efficient air extraction through integrated carbon filters.
(* carbon filter sold separately)
LED lighting

Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Hansa hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Hansa hood, and enjoy the best solutions!

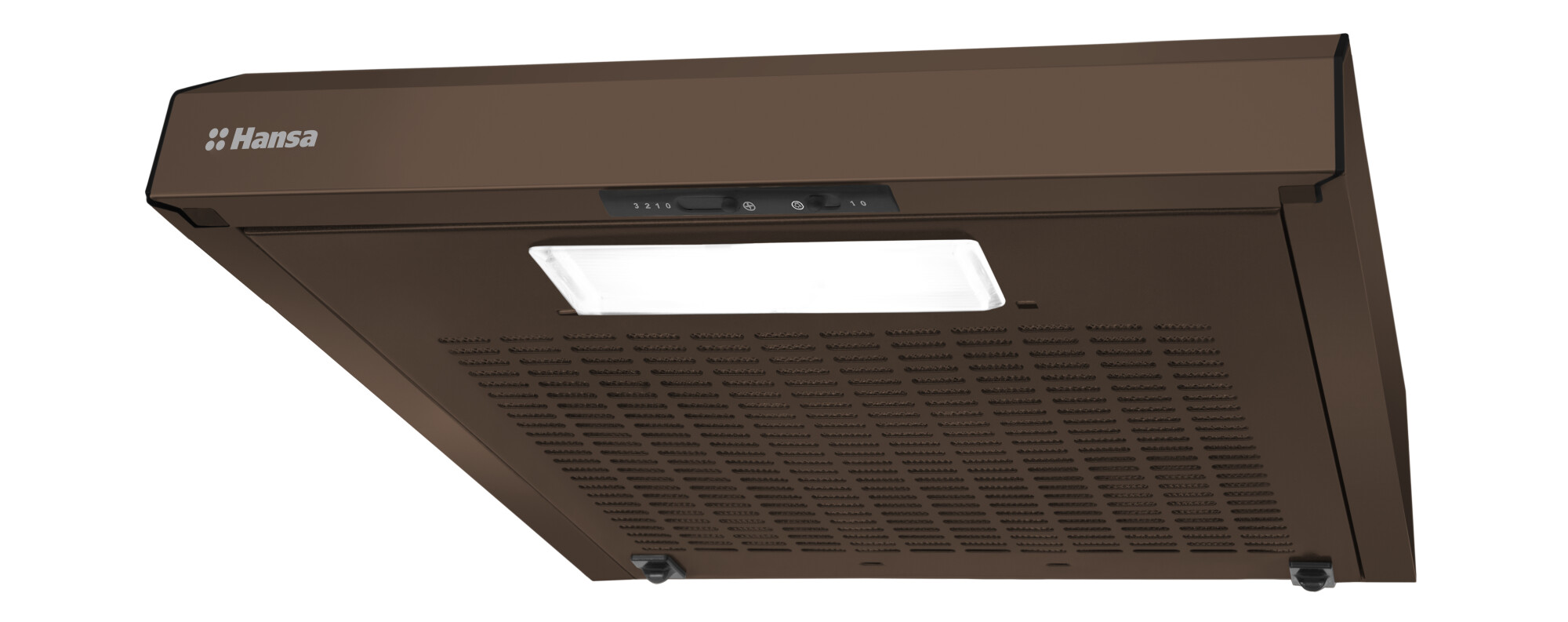

OSC5132BH

OSC5132BH

Carbon filter
LED lighting

Add to comparison Delete comparison

1190701

FEATURES
- Air flaps:
  Yes
- Panel - language version:
  Pictograms
- Protection class of electric shock:
  I_Class
- Type of work:
  Extraction/Recirculation
Equipment
- Number of carbon filters:
  1
- Number of grease filters:
  1
- Number of layers in grease filter:
  2
- Number of speed:
  3
- Type of control:
  Slider
- Type of grease filters:
  Aluminum mesh
- Carbon filter type:
  FWU 50
Technical data
- Frequency:
  50
- Air flow at 1 speed - extractor by EN 61591:
  100 m3/h
- Air flow at 2 speed - extractor by EN 61591:
  130 m3/h
- Air flow at 3 speed - extractor by EN 61591:
  170 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  170 m3/h
- Air Flow at Minimum Speed in Normal Use:
  100 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP:
  103.8 m3/h
- Air Pressure at Best Efficiency Point P BEP:
  180 Pa
- Annual energy consumption:
  41.2 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle:
  61 lux
- Control panel on one side/two sides:
  One side
- Country of Origin on Rating Label:
  Made in Poland
- Dimensions of grease filter:
  300x390
- Display color:
  No
- Distance from light cover to wall:
  360 mm
- Distance to electric hob:
  450 mm
- Distance to gas hob:
  650 mm
- Electric Power Input at Best Efficiency Point - W BEP:
  61.4 W
- Fluid Dynamic Efficiency - FDE hood:
  8.5
- Fluid Dynamic Efficiency Class:
  E
- Grease Filtering Efficiency - GFE hood:
  67.5 %
- Grease Filtering Efficiency Class:
  D
- Internal/external motor:
  Internal
- Main lighting colour temperature [K]:
  3000
- Lighting Efficiency - LE hood:
  14.5 lux/W
- Lighting Efficiency Class:
  D
- Lighting Efficiency Class:
  D
- Maximum Possible Air Flow:
  170 m3/h
- Motor unit rated power:
  85 W
- Motor type/model:
  K-20 025 02 HE
- Net depth:
  470 mm
- Net height max:
  85 mm
- Net height min:
  85 mm
- Net weight:
  3.6 kg
- Net width:
  500 mm
- Noise level at 1 speed - extractor by EN 60704-2-13:
  53 dB
- Noise level at 2 speed - extractor by EN 60704-2-13:
  58 dB
- Noise level at 3 speed - extractor by EN 60704-2-13:
  63 dB
- Nominal Power of the Lighting System - W L:
  4.2 W
- Number of motor units:
  1
- Number units of main lighting:
  1
- Air exhaust diameter:
  120 mm
- Type of plug or cable:
  Euro plug
- Power cabel length:
  150 cm
- Power rating:
  89 W
- Power Supply Voltage:
  230V
- Power unit of main lighting :
  4 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use:
  53 dB
- Noise level:
  63 dB
- Time Increase Factor - f:
  1.7
- Type of main lighting:
  LED bulb E14
- Type of main lighting:
  LED bulb E14
